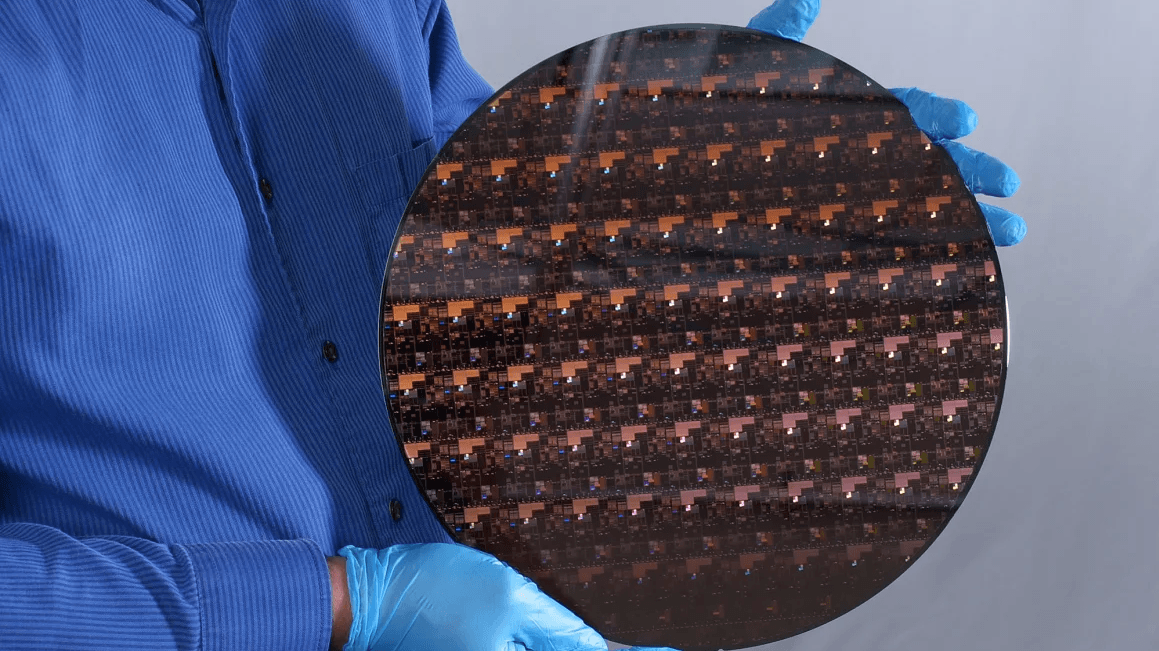

Inside the Reinvention of the Transistor

Why the future of computing now hinges on geometry—and how real chips at every stage reflect that shift. For most of the semiconductor industry’s history, progress followed a simple formula: shrink transistors, pack in more of them, and let physics do the rest. That formula is breaking down. In its place is a quieter, more consequential shift—one defined not by clock speed or software, but by the physical shape of the transistor itself. When Flat Silicon Hit a Wall For nearly four decades, planar CMOS transistors powered everything from desktop PCs to early smartphones. At 90 nanometers in the early 2000s, a single transistor measured roughly 1,000 silicon atoms across. By 28 nanometers, that number had dropped below 300. These flat transistors powered chips such as Intel’s Core 2 processors, early Intel Core i-series CPUs, and Qualcomm Snapdragon smartphone chips built at 28nm. As dimensions shrank, leakage currents surged—industry estimates suggest leakage below 30nm rose by more than 10× compared with 90nm-era devices. Heat, not performance, became the constraint. By around 2011, planar scaling had reached its economic and physical limit. The FinFET Rescue The solution arrived in the form of geometry. In 2011, Intel introduced FinFETs at its 22-nanometer node, replacing flat channels with vertical “fins” wrapped by the gate on three sides. Intel said the move delivered roughly 37% higher performance or 50% lower power than its prior planar generation. The approach quickly spread. TSMC adopted FinFETs at 16nm, refining the design through 7nm, 5nm, and 4nm. Samsung followed at 14nm. FinFETs powered a defining generation of chips: Apple’s A-series processors from the A9 through A16, AMD’s Ryzen CPUs based on Zen architectures, and Nvidia GPUs from Pascal through Ampere and Ada Lovelace. Apple’s M1, built on TSMC’s 5nm FinFET process, packed about 16 billion transistors, while Nvidia’s H100 accelerator exceeded 80 billion. For more than a decade, FinFETs carried Moore’s Law forward. When Fins Became Too Thin At dimensions approaching 3 nanometers, the fin itself became the problem. Fin widths shrink to less than 5 nanometers—roughly 20 silicon atoms—making manufacturing variability harder to control and yields more fragile. Once again, electrostatics began to fail, and once again, the industry needed a new shape. Gate-All-Around Takes Over Gate-All-Around (GAA) transistors extend the FinFET idea to its logical extreme. Instead of fins, the channel is formed by stacked nanosheets completely surrounded by the gate, restoring near-perfect control. Samsung was first to deploy GAA commercially at 3nm in 2022, targeting up to 30% lower power consumption or 15–20% performance gains over comparable FinFET designs. Early GAA chips—primarily mobile system-on-chips—struggled with yields, reportedly well below mature FinFET processes. TSMC plans to introduce GAA at its 2nm node, promising 10–15% speed improvements or 25–30% power reductions compared with its 3nm generation. Intel, pursuing a manufacturing revival, is rolling out its RibbonFET GAA design at its 18A node, expected to underpin future client CPUs such as Panther Lake and next-generation data-center processors. Stacking the Future Beyond GAA, the industry is preparing for CFETs, which vertically stack n-type and p-type transistors. Instead of shrinking sideways, density grows upward. Research suggests CFETs could deliver more than 2× density gains over GAA alone. CFETs remain confined to research labs today, but they are viewed by Intel, TSMC, and European research institutes as essential to sustaining scaling into the 2030s. Why Geometry Now Decides Everything These changes may be invisible to consumers, but their consequences are not. Every advance in AI, mobile computing, and cloud infrastructure now depends on controlling electrons at dimensions measured in tens of atoms. In the 1990s, performance gains came from faster clocks. In the 2000s, from more cores. Today, progress comes from better shapes—and from chips like Apple’s M-series, Nvidia’s AI accelerators, and Intel’s next-generation CPUs that embody those shapes. In a world where a single percentage point of yield can mean billions of dollars, the future of computing may be decided less by software brilliance than by who can bend silicon—quite literally—to their will.
